Float glass production stacking technology

Stacking Technology – Good Stacking Means Better Glass

Flat glass production: Cold End

For the glass line’s stacking process to work well, it relies on a good sorting process. We can develop a smart system for you so that conveying and stacking are a class act. What’s required are the right number of stackers at maximum capacity to deliver a highly accurate and scratch-free result.

Grenzebach Offers Best-in-Class Technologies to Guarantee Precise Stacking at the End of the Glass Lines:

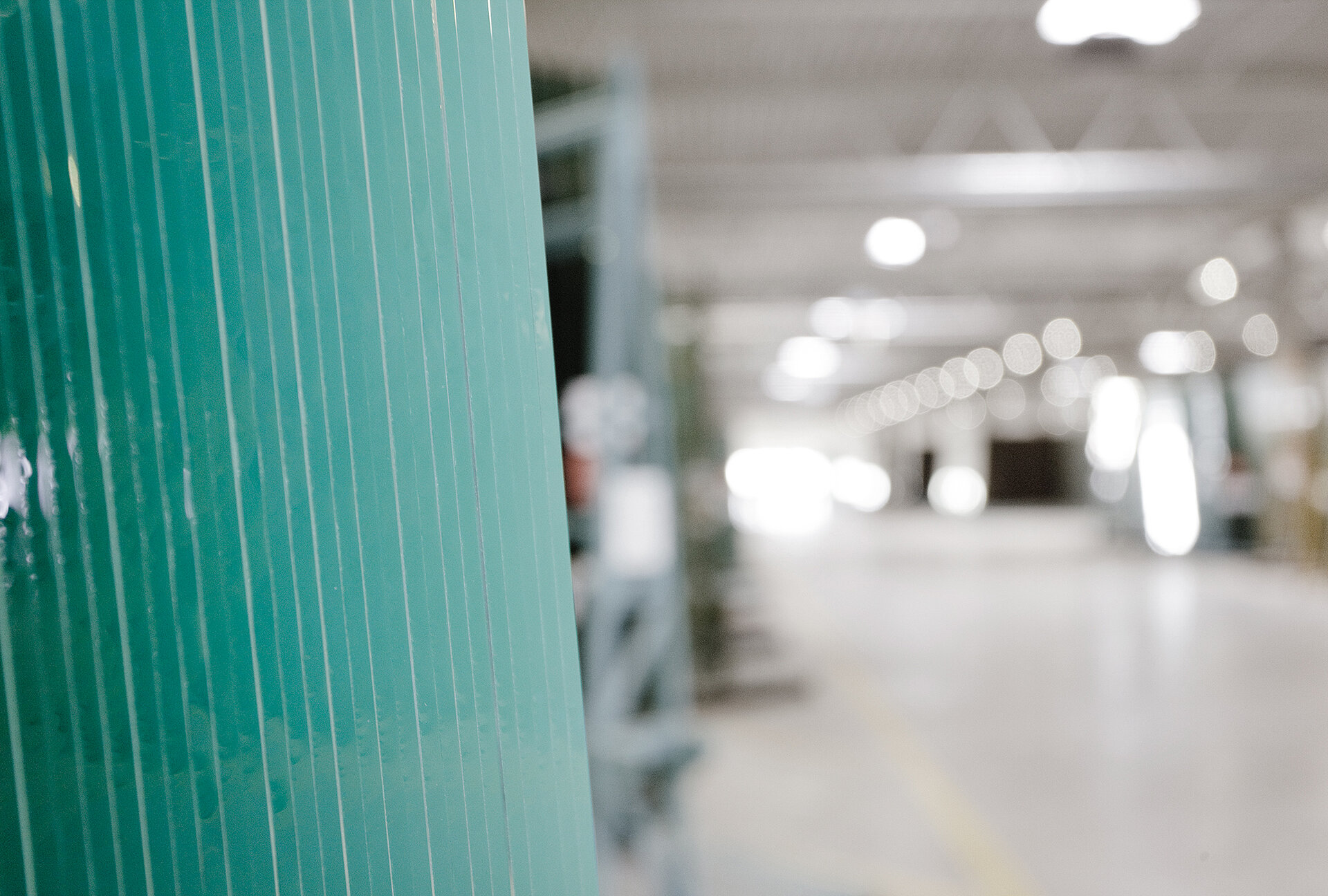

Sheets of glass can be simply removed by hand or by using a fully automatic stacker
for small, mid-size, large and extra-extra-large glass sheets of up to 24 meters or 26 yards
and weighing up to 3 tons or 6613 pounds.

The sheets of glass can be removed from the tin or air side, from several levels – tiers and drops, statically or picked on the fly. Single or dual pick options ensure greater efficiency. The smart combination of two stackers, which can be used singly or as a pair for extra-long sheets, allows fully flexible production.

“We can develop a smart system for you so that conveying and stacking are a class act. What’s required is the right number of stackers at maximum capacity to deliver a highly accurate and scratch-free result.”

Peter Seidl Product Manager at Grenzebach Maschinenbau GmbH

Perfect material flow through handling equipment

Grenzebach Handling Equipment

The Grenzebach portfolio has a large variety of handling equipment, ranging from

portal stackers,
swing stackers,
direct stackers,
under-table stackers
and robot technology.

Various combinations of handling equipment and platforms are possible, too. And it’s all adapted to cope with the subsequent material flow.

Integrated Production Logistics

Intralogistics

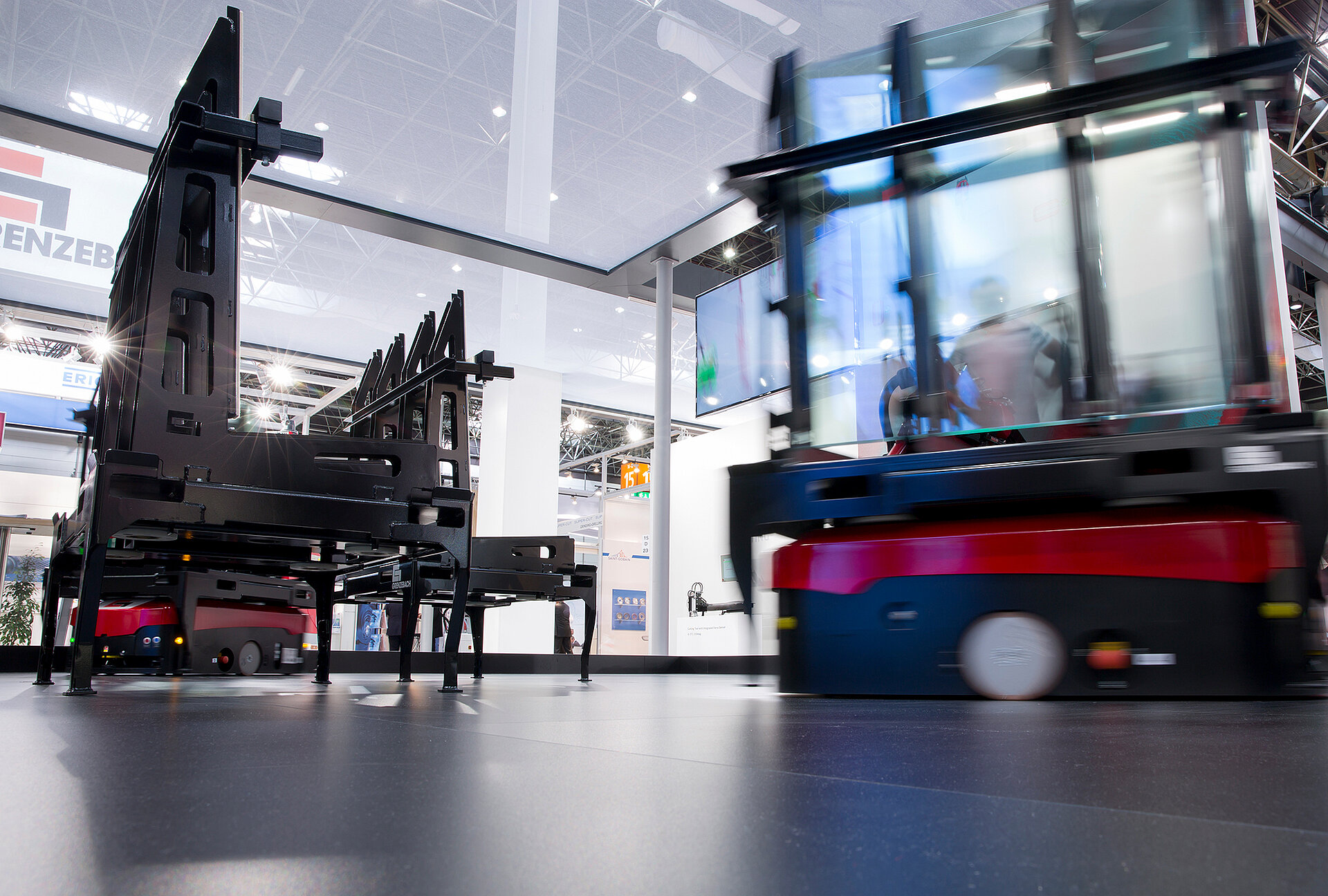

Want to interconnect stations on the glass production line, create links from the cold end to the warehouse or from the production line to temporary storage space? As far as we’re concerned, the sky’s the limit. The factory of the future will revolve around automation concepts that learn as they go along. Traditional conveying technology will grow to increasingly embrace modern robotics and automatic guided vehicles (AGVs), which are autonomous and boast a high level of availability. Automatic guided vehicles enable sustainable flexibility of processes. For example, our software also allows route planning of forklifts and AGVs.

Grenzebach increases efficiently by guaranteeing that the right products are in the right place at the right time.

Intralogistics solutions

Service

The engineering and commissioning of a new system are the first steps towards a successful glass line. Professional service in daily business is just as important - which is why we are at your side throughout the system’s entire life cycle.
