The Best in Veneer Drying Technology
At Grenzebach, we set the industry standard for veneer drying solutions.
From individual dryer systems with manual feeders to fully automated veneer drying lines equipped with feeders, scanners, and stacking systems—we deliver the best technology for the wood manufacturing sector. Our state-of-the-art drying solutions ensure maximum energy efficiency and top-tier product quality.
Decorative veneers are sliced and dried in Grenzebach plants all over the world. These veneers are used in the furniture sector, on yachts, in hotels, and for other interior design purposes. Peeled veneers dried on our drying lines are used to make plywood and LVL (laminated veneer lumber).
Let's take your production to the next level!
1977
Formerly Babcock BSH AG
In 1977 the three companies Buettner, Schilde and Haas founded BSH AG, later known as Babcock BSH.
2002
Babcock BSH merged with Grenzebach
In 2002 we acquired Babcock BSH in Bad Hersfeld, Germany. Today Grenzebach bundles worldwide the competencies and state-of-the-art technologies for the building materials sectors.
Veneer Drying Technology for Peeled Veneers & Decorative Veneers
Equipment & Highlights
Automatic infeed system with up to 23 cycles/min
Overlapping of the veneer sheets at the infeed to optimize the track load and taking into account the shrinkage of the veneer during drying.
Improved air distribution
Flow-optimized air distribution zones and a better balanced air volume over all decks for best, uniform drying results. The result is a higher drying capacity at lower energy consumption, and a high quality final product.
Modular design
Each modular dryer section is 7’10” long. These modules are combined to obtain the required dryer length. Four, six or eight deck dryers with a working width of 13’, 15’9”, 16’4”, 19’ and 20’4” are available.
Special door design
Each aluminized access door extends over an entire section. It can be opened with one hand and features a special door hinge design. Soft bends instead of sharp 90° corners ensure a long lasting and perfect sealing effect.
Sine wave system
The special sine-wave guiding system between carry and cover belt helps to reduce the waviness in particularly wet and difficult to dry veneer species.
Consistent drying
The optimized nozzle boxes with saw tooth tread design guarantee a homogenous distribution of the drying air over the entire width and prevent damage to the veneer sheets.
Improved seal section
End-seal section at the wet end to prevent condensation and carbonization of wood pitch on the dryer walls.
Insulated dryer floor
Insulated floor for highest energy efficiency. No need for special foundations.
Improved end-seal system
End-seal at the dry end to prevent condensation and carbonization of wood pitch on the dryer walls.
Overlapping of the veneer sheets at the infeed to optimize the track load and taking into account the shrinkage of the veneer during drying.
Flow-optimized air distribution zones and a better balanced air volume over all decks for best, uniform drying results. The result is a higher drying capacity at lower energy consumption, and a high quality final product.
Each modular dryer section is 7’10” long. These modules are combined to obtain the required dryer length. Four, six or eight deck dryers with a working width of 13’, 15’9”, 16’4”, 19’ and 20’4” are available.
Each aluminized access door extends over an entire section. It can be opened with one hand and features a special door hinge design. Soft bends instead of sharp 90° corners ensure a long lasting and perfect sealing effect.
The special sine-wave guiding system between carry and cover belt helps to reduce the waviness in particularly wet and difficult to dry veneer species.
The optimized nozzle boxes with saw tooth tread design guarantee a homogenous distribution of the drying air over the entire width and prevent damage to the veneer sheets.
End-seal section at the wet end to prevent condensation and carbonization of wood pitch on the dryer walls.
Insulated floor for highest energy efficiency. No need for special foundations.
End-seal at the dry end to prevent condensation and carbonization of wood pitch on the dryer walls.
Reliability & Quality
Grenzebach’s new generation roller track dryers offer exceptional reliability, minimized downtime, low energy consumption, and superior final product quality. Our partner company Millennium is serving the right solution for your needs on programming and controls.
Quality Non-stop

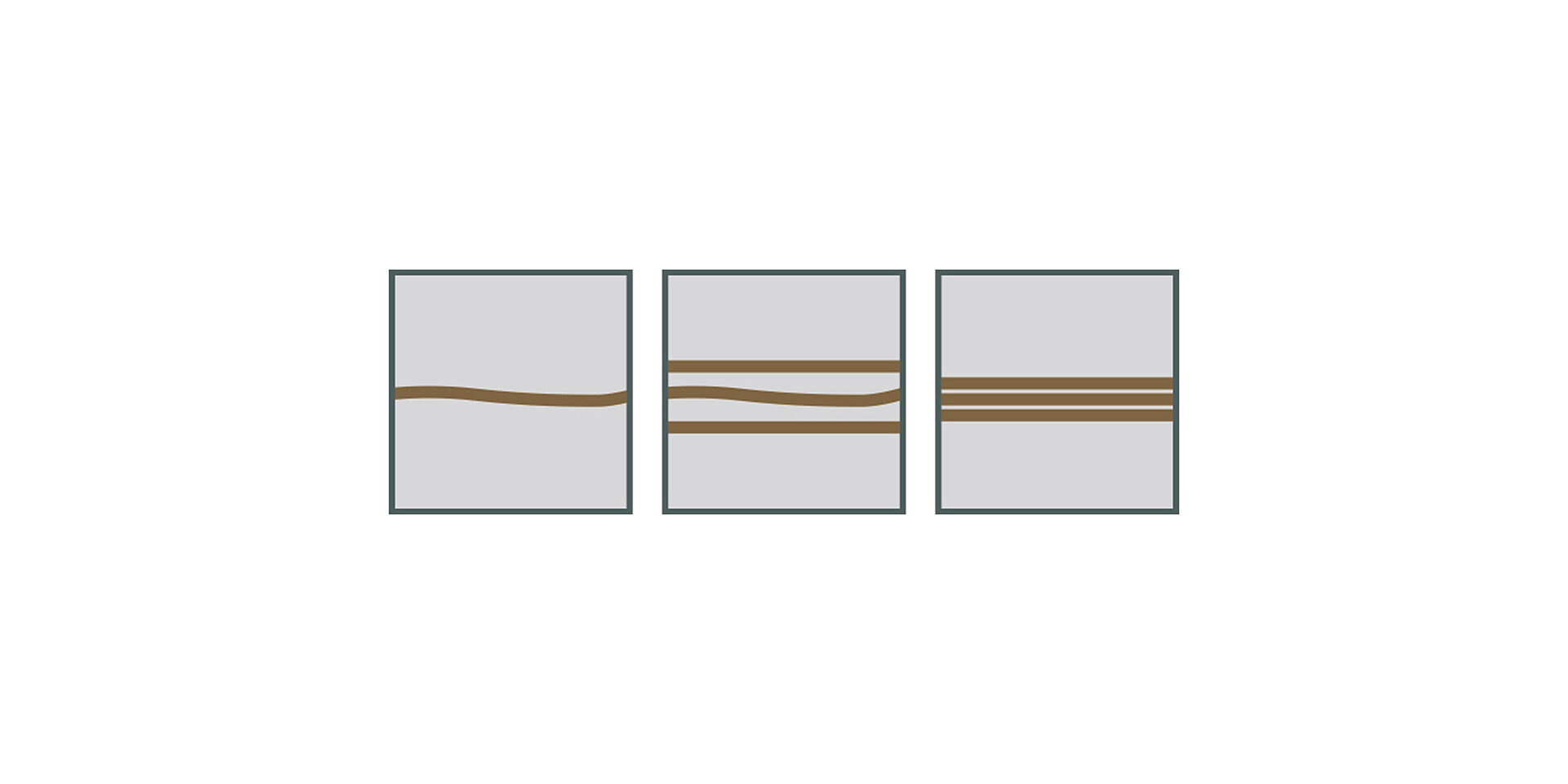

Sine-wave guiding system in the veneer dryer
The unique sine-wave guiding system reduces the waviness of the veneers even when drying wood species with an extremely high moisture content, making handling and processing of the plywood veneers better and easier. The carry and cover belts and the special sine-wave system ensure that the moist veneer sheets, which tend to become wavy, are dried smooth and flat. Belt dryers without sine-wave guiding systems sometimes face the problem of so-called "omega" dry veneers, i.e. deformed sheets that obstruct the run of the sheets and clog up the dryer. Such sheets are not suitable for further processing into plywood or LVL. In the sine-wave belt dryer there are no such stoppages, and waste can be minimized. Not least thanks to the high availability of the system, this also results in a better utilization in downstream production stages.
“We have opted for Grenzebach because their team has a lot of experience in veneer drying. Grenzebach's know-how and service have assisted us with our innovation process. Of course, a number of trial runs were necessary before the optimum was reached, but then drying 3.55 mm beech veneer is not something that can easily be mastered.”
